X-ray detectors Decades in the making
Nearly three decades of engineering dedication have resulted in features we now take for granted: radiation hardness, high resolution, low-noise electronics, fast readout, high dynamic range, graceful handling of saturation, health monitoring, and connection stability.
Our X-ray Detector Families
All Industrial X-ray Detectors
Varex Product | Technology | Panel Size | Pixel Matrix | Pixel Size µm | Maximum Energy (kV) | Max Frame Rate at Max Resolution | Capability | Industry | Family | Pixel Size µm | Panel Size | Maximum Energy (kV) | Max Frame Rate at Max Resolution |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1207N | CMOS | 12 cm x 7 cm | 1536 × 864 | 74.8 | 225 | 60 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Small | 160-225kV | 31-100 | |
1308DX | a-Si | 13 cm x 8 cm | 1024 x 640 | 127 | 225 | 45 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 31-100 | |
1313DX | a-Si | 13 cm x 13 cm | 1024 x 1024 | 127 | 225 | 30 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1313DXT | a-Si | 13 cm x 13 cm | 1024 x 1024 | 127 | 225 | 30 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1512N | CMOS | 15 cm x 12 cm | 1944 × 1536 | 74.8 | 225 | 26 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Small | 160-225kV | 10-30 | |
1515DXT-I | a-Si | 15 cm x 15 cm | 1152 x 1152 | 127 | 225 | 28 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1616DXT | a-Si | 16 cm x 16 cm | 1280 x 1280 | 127 | 160 | 24 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | ≤160kV | 10-30 | |
2307S | CMOS | 23 cm x 7 cm | 3072 x 864 | 74.8 | 160 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | ≤160kV | 10-30 | |
2315N | CMOS | 23 cm x 15 cm | 3072 × 1944 | 74.8 | 225 | 26 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 160-225kV | 10-30 | |
2520DX-I | a-Si | 25 cm x 20 cm | 1536 x 1920 | 127 | 225 | 12.5 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Medium | 160-225kV | 10-30 | |
2530HE | a-Si | 25 cm x 30 cm | 1792 x 2176 | 139 | 16000 | 9 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 101 - 150 | Medium | Isotope; Accelerator | ≤10 | |
3030DX-I | a-Si | 30 cm x 30 cm | 1,536 x 1,536 | 194 | 225 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 151 - 200 | Medium | 160-225kV | 10-30 | |
4343DX-I | a-Si | 43 cm x 43 cm | 3072 x 3072 | 139 | 320 | 4 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 226-450kV | ≤10 | |
4343HE | a-Si | 42.7 cm x 42.7 cm | 3072 x 3072 | 139 | 16000 | 4 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 101 - 150 | Large | Isotope; Accelerator | ≤10 | |
AZURE 1616Z | IGZO | 16 cm x 16 cm | 1536 x 1536 | 105 | 160 | 40 | Electronics; Research and Development, Science, Laboratory | kV | 101 - 150 | Small | ≤160kV | 31-100 | |
AZURE 4131Z | IGZO | 41 cm x 31 cm | 4096 x 3072 | 100 | 160 | 40 | Electronics; Research and Development, Science, Laboratory | kV | ≤100 | Large | ≤160kV | 31-100 | |
DC-TDI | Photon Counting | 102 mm - 800 mm x 6 mm | see Data Sheet for details | 100 | 225 | 750 fps **, 20000 lps ** | Electronics; Food packaging and inspection; Research and Development, Science, Laboratory; Sorting + Recycling + Thickness gauging | Photon Counting Wide | ≤100 | Linear | 160-225kV | 100+ | |
DC-THOR (10G and HE) | Photon Counting | 78 mm - 412 mm x 25/51 mm | see Data Sheet for details | 100 | 450 | 3200 fps * | CUI Software Doppler Z-MLE; Ultra High Speed Detectors | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Photon Counting Area | ≤100 | Linear | 226-450kV | 100+ |
LUMEN 2530W | a-Si | 25 cm x 30 cm | 1900 x 2304 | 131 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Medium | ≤160kV | ≤10 | ||
LUMEN 4336W | a-Si | 43 cm x 36 cm | 2476 x 3072 | 139 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Large | ≤160kV | ≤10 | ||
LUMEN 4343W | a-Si | 43 cm x 43 cm | 3072 x 3072 | 139 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Large | ≤160kV | ≤10 | ||
XRD 0822 | a-Si | 20 cm x 20 cm | 1024 × 1024 | 200 | 16000 | 25 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Medium | Isotope; Accelerator | 10-30 | |
XRD 1611 xQ | a-Si | 41 cm x 41 cm | 4096 × 4096 | 100 | 16000 | 3.75 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | ≤100 | Large | Isotope; Accelerator | ≤10 | |
XRD 1621 xQ | a-Si | 41 cm x 41 cm | 2048 × 2048 | 200 | 16000 | 40 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Large | Isotope; Accelerator | 31-100 | |
XRD 1622 | a-Si | 41 cm x 41 cm | 2048 × 2048 | 200 | 16000 | 1 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Large | Isotope; Accelerator | ≤10 | |
XRD 1642 AP | a-Si | 41 cm x 41 cm | 1024 × 1024 | 400 | 16000 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | ≥201 | Large | Isotope; Accelerator | 10-30 | |
XRD 3025 | a-Si | 30 cm x 25 cm | 3008 x 2512 | 100 | 450 | 5.5 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 226-450kV | ≤10 | |
XRD 3131N | a-Si | 31 cm x 31 cm | 3072 x 3072 | 100 | 450 | 25 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 226-450kV | 10-30 | |
XRD 4343CT | a-Si | 43 cm x 43 cm | 2880 × 2880 | 150 | 225 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 160-225kV | 10-30 | |
XRD 4343N | a-Si | 43 cm x 43 cm | 2880 x 2880 | 150 | 450 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 226-450kV | 10-30 | |
XRpad2 3025i | a-Si | 30 cm x 25 cm | 3008 x 2512 | 100 | 600 | 4 | CUI Software Doppler Z-MLE | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Portable | ≤100 | Medium | Isotope; Accelerator | ≤10 |
XRpad2 4343 | a-Si | 43 cm x 43 cm | 4288 x 4288 | 100 | 120 | 4 | CUI Software Doppler Z-MLE | Electronics; Research and Development, Science, Laboratory | Portable | ≤100 | Large | ≤160kV | ≤10 |
XRpad2 4336i | a-Si | 43 cm x 35 cm | 4288 × 3524 | 100 | 600 | 4 | CUI Software Doppler Z-MLE | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Portable | ≤100 | Large | Isotope; Accelerator | ≤10 |
*THOR-10G 100x50mm, Single Energy 12bit Burst Mode
**TDI-100, Single Energy, 16bit
All Industrial X-ray Detectors
Varex Product | Technology | Panel Size | Pixel Matrix | Pixel Size µm | Maximum Energy (kV) | Max Frame Rate at Max Resolution | Capability | Industry | Family | Pixel Size µm | Panel Size | Maximum Energy (kV) | Max Frame Rate at Max Resolution |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1207N | CMOS | 12 cm x 7 cm | 1536 × 864 | 74.8 | 225 | 60 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Small | 160-225kV | 31-100 | |
1308DX | a-Si | 13 cm x 8 cm | 1024 x 640 | 127 | 225 | 45 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 31-100 | |
1313DX | a-Si | 13 cm x 13 cm | 1024 x 1024 | 127 | 225 | 30 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1313DXT | a-Si | 13 cm x 13 cm | 1024 x 1024 | 127 | 225 | 30 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1512N | CMOS | 15 cm x 12 cm | 1944 × 1536 | 74.8 | 225 | 26 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Small | 160-225kV | 10-30 | |
1515DXT-I | a-Si | 15 cm x 15 cm | 1152 x 1152 | 127 | 225 | 28 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1616DXT | a-Si | 16 cm x 16 cm | 1280 x 1280 | 127 | 160 | 24 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | ≤160kV | 10-30 | |
2307S | CMOS | 23 cm x 7 cm | 3072 x 864 | 74.8 | 160 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | ≤160kV | 10-30 | |
2315N | CMOS | 23 cm x 15 cm | 3072 × 1944 | 74.8 | 225 | 26 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 160-225kV | 10-30 | |
2520DX-I | a-Si | 25 cm x 20 cm | 1536 x 1920 | 127 | 225 | 12.5 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Medium | 160-225kV | 10-30 | |
2530HE | a-Si | 25 cm x 30 cm | 1792 x 2176 | 139 | 16000 | 9 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 101 - 150 | Medium | Isotope; Accelerator | ≤10 | |
3030DX-I | a-Si | 30 cm x 30 cm | 1,536 x 1,536 | 194 | 225 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 151 - 200 | Medium | 160-225kV | 10-30 | |
4343DX-I | a-Si | 43 cm x 43 cm | 3072 x 3072 | 139 | 320 | 4 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 226-450kV | ≤10 | |
4343HE | a-Si | 42.7 cm x 42.7 cm | 3072 x 3072 | 139 | 16000 | 4 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 101 - 150 | Large | Isotope; Accelerator | ≤10 | |
AZURE 1616Z | IGZO | 16 cm x 16 cm | 1536 x 1536 | 105 | 160 | 40 | Electronics; Research and Development, Science, Laboratory | kV | 101 - 150 | Small | ≤160kV | 31-100 | |
AZURE 4131Z | IGZO | 41 cm x 31 cm | 4096 x 3072 | 100 | 160 | 40 | Electronics; Research and Development, Science, Laboratory | kV | ≤100 | Large | ≤160kV | 31-100 | |
DC-TDI | Photon Counting | 102 mm - 800 mm x 6 mm | see Data Sheet for details | 100 | 225 | 750 fps **, 20000 lps ** | Electronics; Food packaging and inspection; Research and Development, Science, Laboratory; Sorting + Recycling + Thickness gauging | Photon Counting Wide | ≤100 | Linear | 160-225kV | 100+ | |
DC-THOR (10G and HE) | Photon Counting | 78 mm - 412 mm x 25/51 mm | see Data Sheet for details | 100 | 450 | 3200 fps * | CUI Software Doppler Z-MLE; Ultra High Speed Detectors | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Photon Counting Area | ≤100 | Linear | 226-450kV | 100+ |
LUMEN 2530W | a-Si | 25 cm x 30 cm | 1900 x 2304 | 131 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Medium | ≤160kV | ≤10 | ||
LUMEN 4336W | a-Si | 43 cm x 36 cm | 2476 x 3072 | 139 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Large | ≤160kV | ≤10 | ||
LUMEN 4343W | a-Si | 43 cm x 43 cm | 3072 x 3072 | 139 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Large | ≤160kV | ≤10 | ||
XRD 0822 | a-Si | 20 cm x 20 cm | 1024 × 1024 | 200 | 16000 | 25 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Medium | Isotope; Accelerator | 10-30 | |
XRD 1611 xQ | a-Si | 41 cm x 41 cm | 4096 × 4096 | 100 | 16000 | 3.75 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | ≤100 | Large | Isotope; Accelerator | ≤10 | |
XRD 1621 xQ | a-Si | 41 cm x 41 cm | 2048 × 2048 | 200 | 16000 | 40 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Large | Isotope; Accelerator | 31-100 | |
XRD 1622 | a-Si | 41 cm x 41 cm | 2048 × 2048 | 200 | 16000 | 1 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Large | Isotope; Accelerator | ≤10 | |
XRD 1642 AP | a-Si | 41 cm x 41 cm | 1024 × 1024 | 400 | 16000 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | ≥201 | Large | Isotope; Accelerator | 10-30 | |
XRD 3025 | a-Si | 30 cm x 25 cm | 3008 x 2512 | 100 | 450 | 5.5 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 226-450kV | ≤10 | |
XRD 3131N | a-Si | 31 cm x 31 cm | 3072 x 3072 | 100 | 450 | 25 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 226-450kV | 10-30 | |
XRD 4343CT | a-Si | 43 cm x 43 cm | 2880 × 2880 | 150 | 225 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 160-225kV | 10-30 | |
XRD 4343N | a-Si | 43 cm x 43 cm | 2880 x 2880 | 150 | 450 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 226-450kV | 10-30 | |
XRpad2 3025i | a-Si | 30 cm x 25 cm | 3008 x 2512 | 100 | 600 | 4 | CUI Software Doppler Z-MLE | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Portable | ≤100 | Medium | Isotope; Accelerator | ≤10 |
XRpad2 4343 | a-Si | 43 cm x 43 cm | 4288 x 4288 | 100 | 120 | 4 | CUI Software Doppler Z-MLE | Electronics; Research and Development, Science, Laboratory | Portable | ≤100 | Large | ≤160kV | ≤10 |
XRpad2 4336i | a-Si | 43 cm x 35 cm | 4288 × 3524 | 100 | 600 | 4 | CUI Software Doppler Z-MLE | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Portable | ≤100 | Large | Isotope; Accelerator | ≤10 |
*THOR-10G 100x50mm, Single Energy 12bit Burst Mode
**TDI-100, Single Energy, 16bit
Up to 450kV X-ray Detectors
Varex Product | Technology | Panel Size | Pixel Matrix | Pixel Size µm | Maximum Energy (kV) | Max Frame Rate at Max Resolution | Capability | Industry | Family | Pixel Size µm | Panel Size | Maximum Energy (kV) | Max Frame Rate at Max Resolution |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1207N | CMOS | 12 cm x 7 cm | 1536 × 864 | 74.8 | 225 | 60 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Small | 160-225kV | 31-100 | |
1308DX | a-Si | 13 cm x 8 cm | 1024 x 640 | 127 | 225 | 45 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 31-100 | |
1313DX | a-Si | 13 cm x 13 cm | 1024 x 1024 | 127 | 225 | 30 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1313DXT | a-Si | 13 cm x 13 cm | 1024 x 1024 | 127 | 225 | 30 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1512N | CMOS | 15 cm x 12 cm | 1944 × 1536 | 74.8 | 225 | 26 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Small | 160-225kV | 10-30 | |
1515DXT-I | a-Si | 15 cm x 15 cm | 1152 x 1152 | 127 | 225 | 28 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1616DXT | a-Si | 16 cm x 16 cm | 1280 x 1280 | 127 | 160 | 24 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | ≤160kV | 10-30 | |
2307S | CMOS | 23 cm x 7 cm | 3072 x 864 | 74.8 | 160 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | ≤160kV | 10-30 | |
2315N | CMOS | 23 cm x 15 cm | 3072 × 1944 | 74.8 | 225 | 26 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 160-225kV | 10-30 | |
2520DX-I | a-Si | 25 cm x 20 cm | 1536 x 1920 | 127 | 225 | 12.5 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Medium | 160-225kV | 10-30 | |
3030DX-I | a-Si | 30 cm x 30 cm | 1,536 x 1,536 | 194 | 225 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 151 - 200 | Medium | 160-225kV | 10-30 | |
4343DX-I | a-Si | 43 cm x 43 cm | 3072 x 3072 | 139 | 320 | 4 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 226-450kV | ≤10 | |
XRD 4343N | a-Si | 43 cm x 43 cm | 2880 x 2880 | 150 | 450 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 226-450kV | 10-30 | |
AZURE 1616Z | IGZO | 16 cm x 16 cm | 1536 x 1536 | 105 | 160 | 40 | Electronics; Research and Development, Science, Laboratory | kV | 101 - 150 | Small | ≤160kV | 31-100 | |
AZURE 4131Z | IGZO | 41 cm x 31 cm | 4096 x 3072 | 100 | 160 | 40 | Electronics; Research and Development, Science, Laboratory | kV | ≤100 | Large | ≤160kV | 31-100 | |
XRD 3025 | a-Si | 30 cm x 25 cm | 3008 x 2512 | 100 | 450 | 5.5 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 226-450kV | ≤10 | |
XRD 3131N | a-Si | 31 cm x 31 cm | 3072 x 3072 | 100 | 450 | 25 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 226-450kV | 10-30 | |
XRD 4343CT | a-Si | 43 cm x 43 cm | 2880 × 2880 | 150 | 225 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 160-225kV | 10-30 |
Up to 450kV X-ray Detectors
Varex Product | Technology | Panel Size | Pixel Matrix | Pixel Size µm | Maximum Energy (kV) | Max Frame Rate at Max Resolution | Capability | Industry | Family | Pixel Size µm | Panel Size | Maximum Energy (kV) | Max Frame Rate at Max Resolution |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1207N | CMOS | 12 cm x 7 cm | 1536 × 864 | 74.8 | 225 | 60 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Small | 160-225kV | 31-100 | |
1308DX | a-Si | 13 cm x 8 cm | 1024 x 640 | 127 | 225 | 45 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 31-100 | |
1313DX | a-Si | 13 cm x 13 cm | 1024 x 1024 | 127 | 225 | 30 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1313DXT | a-Si | 13 cm x 13 cm | 1024 x 1024 | 127 | 225 | 30 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1512N | CMOS | 15 cm x 12 cm | 1944 × 1536 | 74.8 | 225 | 26 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Small | 160-225kV | 10-30 | |
1515DXT-I | a-Si | 15 cm x 15 cm | 1152 x 1152 | 127 | 225 | 28 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | 160-225kV | 10-30 | |
1616DXT | a-Si | 16 cm x 16 cm | 1280 x 1280 | 127 | 160 | 24 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Small | ≤160kV | 10-30 | |
2307S | CMOS | 23 cm x 7 cm | 3072 x 864 | 74.8 | 160 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | ≤160kV | 10-30 | |
2315N | CMOS | 23 cm x 15 cm | 3072 × 1944 | 74.8 | 225 | 26 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 160-225kV | 10-30 | |
2520DX-I | a-Si | 25 cm x 20 cm | 1536 x 1920 | 127 | 225 | 12.5 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Medium | 160-225kV | 10-30 | |
3030DX-I | a-Si | 30 cm x 30 cm | 1,536 x 1,536 | 194 | 225 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 151 - 200 | Medium | 160-225kV | 10-30 | |
4343DX-I | a-Si | 43 cm x 43 cm | 3072 x 3072 | 139 | 320 | 4 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 226-450kV | ≤10 | |
XRD 4343N | a-Si | 43 cm x 43 cm | 2880 x 2880 | 150 | 450 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 226-450kV | 10-30 | |
AZURE 1616Z | IGZO | 16 cm x 16 cm | 1536 x 1536 | 105 | 160 | 40 | Electronics; Research and Development, Science, Laboratory | kV | 101 - 150 | Small | ≤160kV | 31-100 | |
AZURE 4131Z | IGZO | 41 cm x 31 cm | 4096 x 3072 | 100 | 160 | 40 | Electronics; Research and Development, Science, Laboratory | kV | ≤100 | Large | ≤160kV | 31-100 | |
XRD 3025 | a-Si | 30 cm x 25 cm | 3008 x 2512 | 100 | 450 | 5.5 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 226-450kV | ≤10 | |
XRD 3131N | a-Si | 31 cm x 31 cm | 3072 x 3072 | 100 | 450 | 25 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | ≤100 | Medium | 226-450kV | 10-30 | |
XRD 4343CT | a-Si | 43 cm x 43 cm | 2880 × 2880 | 150 | 225 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | kV | 101 - 150 | Large | 160-225kV | 10-30 |
Up to 16mv X-ray Detectors
Varex Product | Technology | Panel Size | Pixel Matrix | Pixel Size µm | Maximum Energy (kV) | Max Frame Rate at Max Resolution | Capability | Industry | Family | Pixel Size µm | Panel Size | Maximum Energy (kV) | Max Frame Rate at Max Resolution |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2530HE | a-Si | 25 cm x 30 cm | 1792 x 2176 | 139 | 16000 | 9 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 101 - 150 | Medium | Isotope; Accelerator | ≤10 | |
4343HE | a-Si | 42.7 cm x 42.7 cm | 3072 x 3072 | 139 | 16000 | 4 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 101 - 150 | Large | Isotope; Accelerator | ≤10 | |
XRD 0822 | a-Si | 20 cm x 20 cm | 1024 × 1024 | 200 | 16000 | 25 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Medium | Isotope; Accelerator | 10-30 | |
XRD 1611 xQ | a-Si | 41 cm x 41 cm | 4096 × 4096 | 100 | 16000 | 3.75 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | ≤100 | Large | Isotope; Accelerator | ≤10 | |
XRD 1621 xQ | a-Si | 41 cm x 41 cm | 2048 × 2048 | 200 | 16000 | 40 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Large | Isotope; Accelerator | 31-100 | |
XRD 1622 | a-Si | 41 cm x 41 cm | 2048 × 2048 | 200 | 16000 | 1 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Large | Isotope; Accelerator | ≤10 | |
XRD 1642 AP | a-Si | 41 cm x 41 cm | 1024 × 1024 | 400 | 16000 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | ≥201 | Large | Isotope; Accelerator | 10-30 |
Up to 16mv X-ray Detectors
Varex Product | Technology | Panel Size | Pixel Matrix | Pixel Size µm | Maximum Energy (kV) | Max Frame Rate at Max Resolution | Capability | Industry | Family | Pixel Size µm | Panel Size | Maximum Energy (kV) | Max Frame Rate at Max Resolution |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2530HE | a-Si | 25 cm x 30 cm | 1792 x 2176 | 139 | 16000 | 9 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 101 - 150 | Medium | Isotope; Accelerator | ≤10 | |
4343HE | a-Si | 42.7 cm x 42.7 cm | 3072 x 3072 | 139 | 16000 | 4 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 101 - 150 | Large | Isotope; Accelerator | ≤10 | |
XRD 0822 | a-Si | 20 cm x 20 cm | 1024 × 1024 | 200 | 16000 | 25 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Medium | Isotope; Accelerator | 10-30 | |
XRD 1611 xQ | a-Si | 41 cm x 41 cm | 4096 × 4096 | 100 | 16000 | 3.75 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | ≤100 | Large | Isotope; Accelerator | ≤10 | |
XRD 1621 xQ | a-Si | 41 cm x 41 cm | 2048 × 2048 | 200 | 16000 | 40 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Large | Isotope; Accelerator | 31-100 | |
XRD 1622 | a-Si | 41 cm x 41 cm | 2048 × 2048 | 200 | 16000 | 1 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | 151 - 200 | Large | Isotope; Accelerator | ≤10 | |
XRD 1642 AP | a-Si | 41 cm x 41 cm | 1024 × 1024 | 400 | 16000 | 15 | Aerospace; Automotive and EV; Electronics; Research and Development, Science, Laboratory; Energy: Power Generation; Energy: Oil and Gas; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | HE | ≥201 | Large | Isotope; Accelerator | 10-30 |
Photon Counting X-ray Detectors
Varex Product | Technology | Panel Size | Pixel Matrix | Pixel Size µm | Maximum Energy (kV) | Max Frame Rate at Max Resolution | Capability | Industry | Family | Pixel Size µm | Panel Size | Maximum Energy (kV) | Max Frame Rate at Max Resolution |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DC-THOR (10G and HE) | Photon Counting | 78 mm - 412 mm x 25/51 mm | see Data Sheet for details | 100 | 450 | 750 fps **, 20000 lps ** | CUI Software Doppler Z-MLE; Ultra High Speed Detectors | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Photon Counting Area | ≤100 | Linear | 226-450kV | 100+ |
DC-TDI | Photon Counting | 102 mm - 800 mm x 6 mm | see Data Sheet for details | 100 | 225 | 3200 fps * | Electronics; Food packaging and inspection; Research and Development, Science, Laboratory; Sorting + Recycling + Thickness gauging | Photon Counting Wide | ≤100 | Linear | 160-225kV | 100+ |
*THOR-10G 100x50mm, Single Energy 12bit Burst Mode
**TDI-100, Single Energy, 16bit
Photon Counting X-ray Detectors
Varex Product | Technology | Panel Size | Pixel Matrix | Pixel Size µm | Maximum Energy (kV) | Max Frame Rate at Max Resolution | Capability | Industry | Family | Pixel Size µm | Panel Size | Maximum Energy (kV) | Max Frame Rate at Max Resolution |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DC-THOR (10G and HE) | Photon Counting | 78 mm - 412 mm x 25/51 mm | see Data Sheet for details | 100 | 450 | 750 fps **, 20000 lps ** | CUI Software Doppler Z-MLE; Ultra High Speed Detectors | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Photon Counting Area | ≤100 | Linear | 226-450kV | 100+ |
DC-TDI | Photon Counting | 102 mm - 800 mm x 6 mm | see Data Sheet for details | 100 | 225 | 3200 fps * | Electronics; Food packaging and inspection; Research and Development, Science, Laboratory; Sorting + Recycling + Thickness gauging | Photon Counting Wide | ≤100 | Linear | 160-225kV | 100+ |
*THOR-10G 100x50mm, Single Energy 12bit Burst Mode
**TDI-100, Single Energy, 16bit

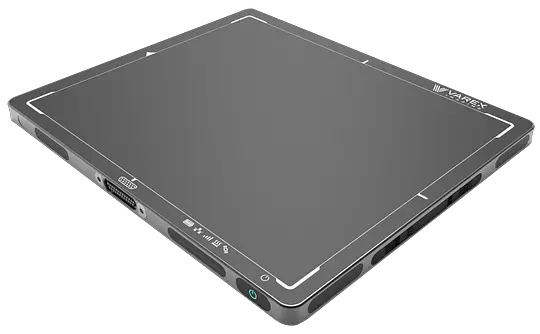

Portable X-ray Detectors
Varex Product | Technology | Panel Size | Pixel Matrix | Pixel Size µm | Maximum Energy (kV) | Max Frame Rate at Max Resolution | Capability | Industry | Family | Pixel Size µm | Panel Size | Maximum Energy (kV) | Max Frame Rate at Max Resolution |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LUMEN 2530W | a-Si | 25 cm x 30 cm | 1900 x 2304 | 131 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Medium | ≤160kV | ≤10 | ||
LUMEN 4336W | a-Si | 43 cm x 36 cm | 2476 x 3072 | 139 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Large | ≤160kV | ≤10 | ||
LUMEN 4343W | a-Si | 43 cm x 43 cm | 3072 x 3072 | 139 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Large | ≤160kV | ≤10 | ||
XRpad2 3025i | a-Si | 30 cm x 25 cm | 3008 x 2512 | 100 | 600 | 4 | CUI Software Doppler Z-MLE | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Portable | ≤100 | Medium | Isotope; Accelerator | ≤10 |
XRpad2 4343 | a-Si | 43 cm x 43 cm | 4288 x 4288 | 100 | 120 | 4 | CUI Software Doppler Z-MLE | Electronics; Research and Development, Science, Laboratory | Portable | ≤100 | Large | ≤160kV | ≤10 |
XRpad2 4336i | a-Si | 43 cm x 35 cm | 4288 × 3524 | 100 | 600 | 4 | CUI Software Doppler Z-MLE | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Portable | ≤100 | Large | Isotope; Accelerator | ≤10 |
Portable X-ray Detectors
Varex Product | Technology | Panel Size | Pixel Matrix | Pixel Size µm | Maximum Energy (kV) | Max Frame Rate at Max Resolution | Capability | Industry | Family | Pixel Size µm | Panel Size | Maximum Energy (kV) | Max Frame Rate at Max Resolution |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LUMEN 2530W | a-Si | 25 cm x 30 cm | 1900 x 2304 | 131 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Medium | ≤160kV | ≤10 | ||
LUMEN 4336W | a-Si | 43 cm x 36 cm | 2476 x 3072 | 139 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Large | ≤160kV | ≤10 | ||
LUMEN 4343W | a-Si | 43 cm x 43 cm | 3072 x 3072 | 139 | 120 | Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers | Portable | 101 - 150 | Large | ≤160kV | ≤10 | ||
XRpad2 3025i | a-Si | 30 cm x 25 cm | 3008 x 2512 | 100 | 600 | 4 | CUI Software Doppler Z-MLE | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Portable | ≤100 | Medium | Isotope; Accelerator | ≤10 |
XRpad2 4343 | a-Si | 43 cm x 43 cm | 4288 x 4288 | 100 | 120 | 4 | CUI Software Doppler Z-MLE | Electronics; Research and Development, Science, Laboratory | Portable | ≤100 | Large | ≤160kV | ≤10 |
XRpad2 4336i | a-Si | 43 cm x 35 cm | 4288 × 3524 | 100 | 600 | 4 | CUI Software Doppler Z-MLE | Aerospace; Energy: Power Generation; Energy: Oil and Gas; Customs and Borders; Ports; NDT Service Providers; Military/Defense; Metals/ Manufacturing and Castings | Portable | ≤100 | Large | Isotope; Accelerator | ≤10 |
Imaging Capabilities
Why settle for 100, when you can have 1000?
THOR 10G detectors combine high speed photon counting pixels with advanced high speed internal data buses, and finally 10G network adapters to enable maximum framerates.
