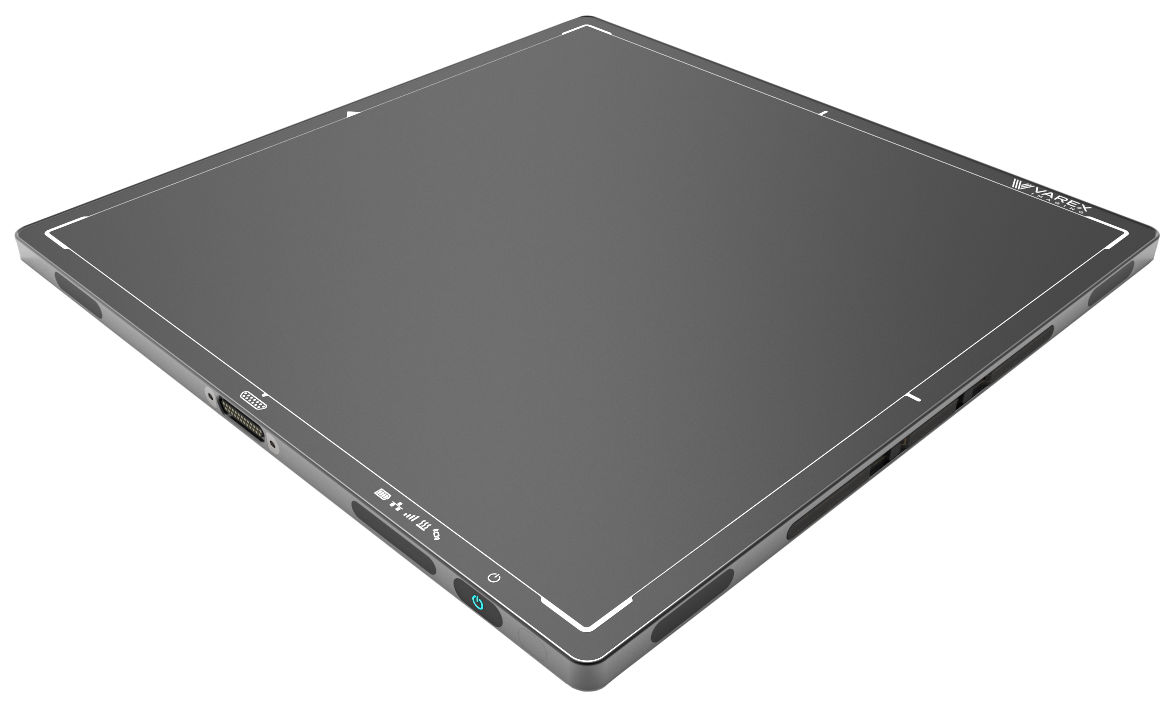

XRpad2 4343

The XRpad2 4343 is a lightweight, wireless flat panel detector with advanced features enabling digital radiography as never seen before. Featuring a best-in-class 100 μm pixel size, direct deposition CsI scintillator, and excellent DQE, the XRpad2 4343 enables high resolution imaging with reduced X-ray exposure. Design of the second-generation XRpad® is lightweight, robust and ergonomic, permitting easy lifting from tabletop. Automatic exposure detection, on-board corrections, and wireless access point mode make system integration quick and simple. The XRpad2 4343 includes fast preview, internal image storage, and magnetic connector for tethering or docking. Sequence imaging mode at up to 8 fps facilitates advanced applications such as tomosynthesis, dual energy subtraction, and image stitching.

Features and benefits for the XRpad2 4343 flat panel detector include:

• Cassette detector per ISO 4090, fits in bucky
• 43 cm x 43 cm (17" x 17") image
• High resolution 100 μm pixel pitch (5.0 lp/mm)
• Direct deposition Csl, for excellent image quality
• Up to 65,536 grey levels (16-bit ADC)
• Automatic Exposure Detection (AED)
• Wi-Fi interface (Station and Access Point modes)
• Docking connector for GigE, power and sync
• On-board pixel corrections and storage
• Sequence mode with 8 fps at 200 μm resolution
• Fast preview image
• Robust and lightweight design
