XRD 1622

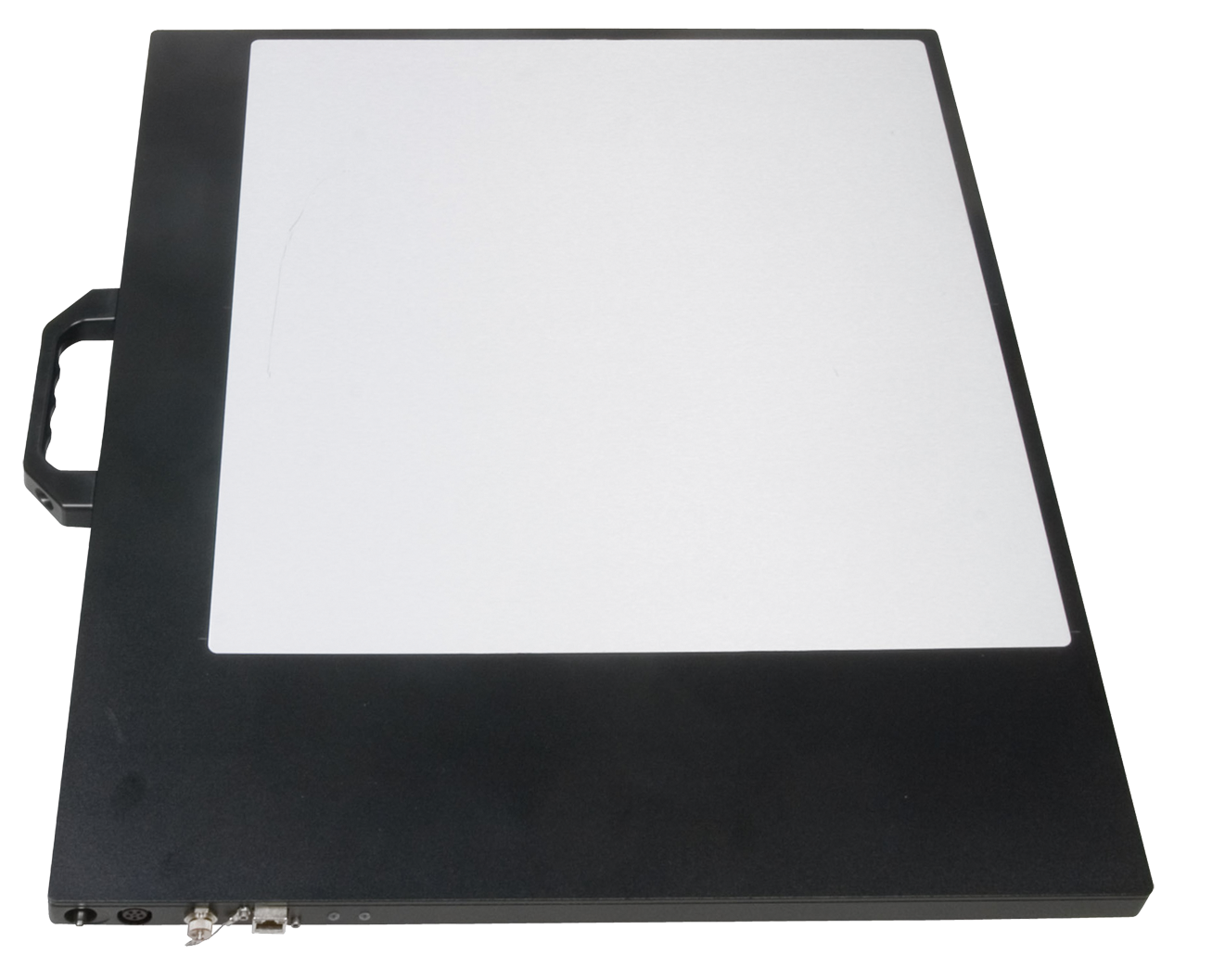

Part of the Varex Imaging family of 16 inch (41 cm) field of view amorphous silicon (a-Si) digital detectors, the Varex Imaging XRD 1622 is the flat panel X-ray detector for superior image quality and a high dynamic range.

Two models of the Varex Imaging XRD 1622 digital Flat Panel X-ray Detectors (FPDs) are available:

  1. The Varex Imaging XRD 1622 AO provides over 74 dB of dynamic range and 1 frame per second (fps)
  2. The enhanced performance Varex Imaging XRD 1622 AP offers over 87 dB of dynamic range and frame rates up to 4 fps via multiple read-out modes

Both detectors support a broad range of energy levels from 20 kV – 15 MV and are available with several shielding and scintillator options. Rapid system integration is accomplished via Gigabit Ethernet data communication, integrated trigger and X-ray synchronization circuitry, and a comprehensive software library for image acquisition and processing.

The wide energy range, variable frame rates, and shielding options allow the Varex Imaging XRD 1622 to meet the component requirements of applications such as radiation oncology therapy for cancer treatment, veterinary imaging, and life and physical science.

Features and benefits of the XRD 1622 flat panel detector includes:

  • Radiation-hardened for harsh environments
  • 200μm pixel pitch
  • Up to 65,536 gray levels
  • X-ray energies from 20 kV – 15 MV
  • Selectable gain settings
  • Gigabit Ethernet interface
If you are interested in this product or have any questions, please fill out our contact form below.

Contact Us
Varex Product
Technology Panel Size Pixel Matrix PIXEL SIZE µm Energy Range (kV) Scintillator Type
XRD 1622
41 cm x 41 cm
2048 × 2048
20 kV – 15 MV
CsI or Gadox
