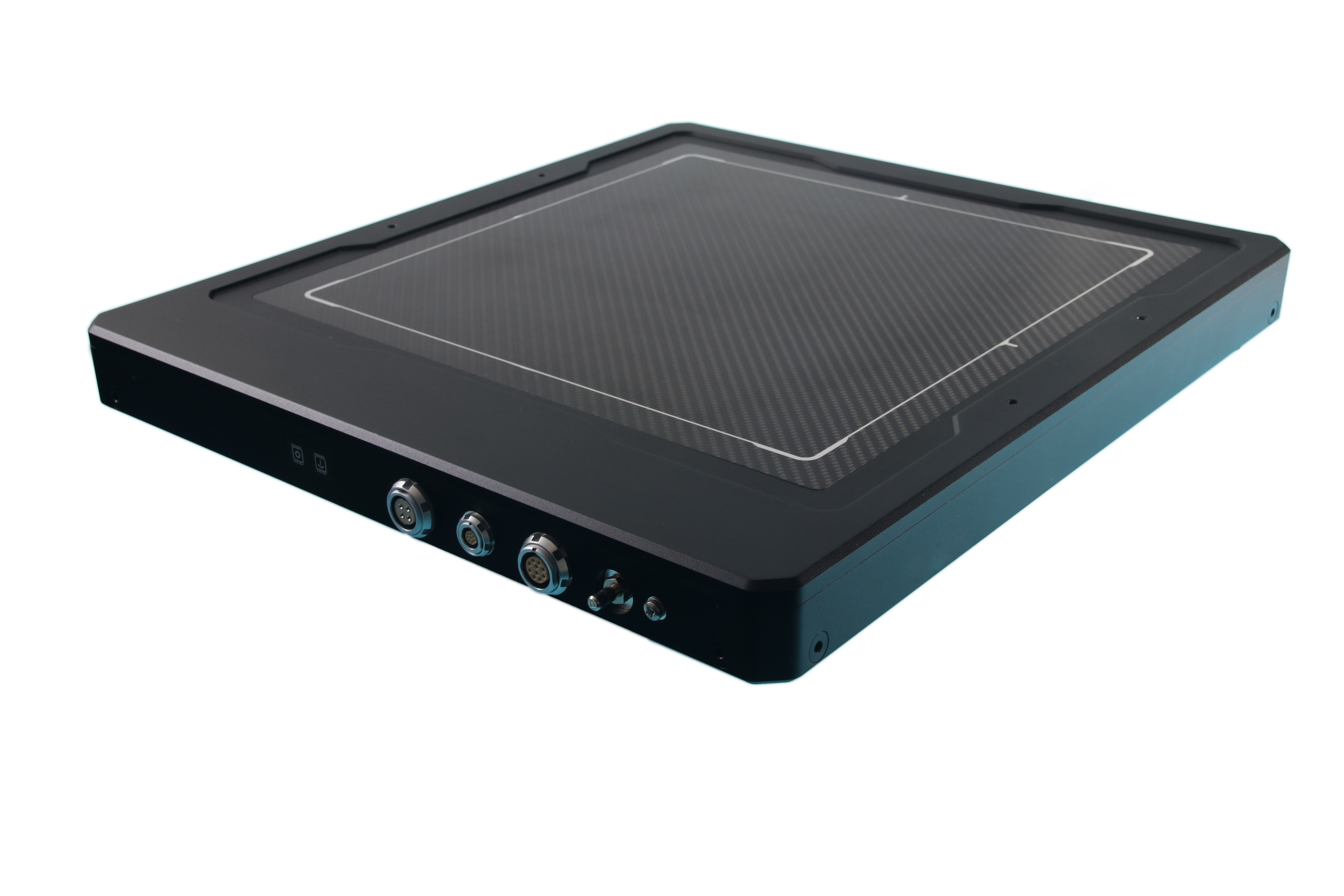

XRD 3131N

Varex Imaging’s XRD 3131N is a high speed, large area amorphous silicon Flat Panel X-ray detector for high dose industrial applications.

The XRD 3131N supports a full 31 x 31 cm2 field of view, is available with several scintillator options and shielding options for high-dose non-destructive testing, including inline Cone Beam Computed Tomography, using energies up to 450 kV. This detector has a 100 µm native pixel pitch and operates at 25 fps at full resolution and full field of view; it also supports different fields of view and binning modes.

Rapid system integration is accomplished with integrated trigger and X-ray synchronization, a frame grabber providing real-time image-processing and a comprehensive software library for image acquisition and processing.

FEATURES AND BENEFITS
• High resolution with high speed
• 25 fps @ 100 µm
• Selectable Modes up to 150 fps
• Designed for 24/7 Applications
• Ultra high sensitivity
• Up to 450 kV
• Real time corrections

APPLICATIONS
• Inline Battery Inspection
• Inline CBCT
• Metrology
• Scientific applications

Varex Product
Technology Panel Size Pixel Matrix PIXEL SIZE µm Energy Range (kV) Scintillator Type
XRD 3131N
a-Si
31 x 31
3072 x 3072
100
160 - 450 kV
Gadox or CsI:Tl
