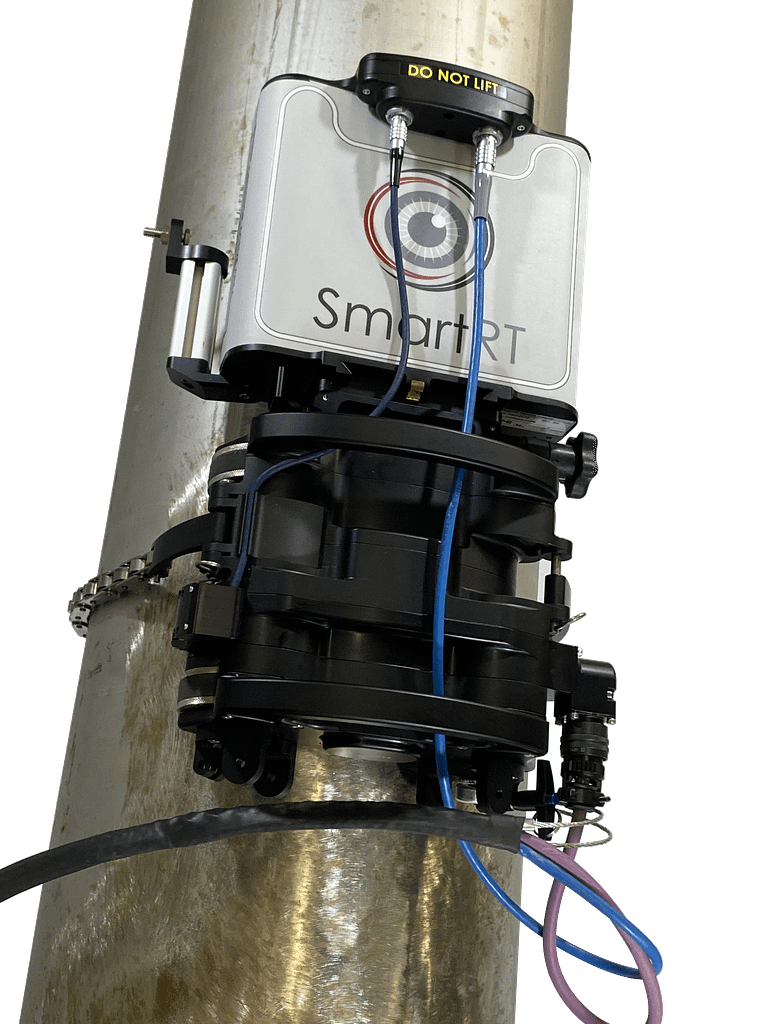

The Varex Imaging NDT Solutions Smart RT-PWS+, one of our Smart RT product solutions, brings together the benefits of automation yet maintains the familiarity of traditional gamma radiography. This unique pipe weld inspection system merges industry-proven hardware with an acquisition interface utilizing embedded scan plans. As always, we use a user-friendly Review platform to perform image analysis.
Smart RT-PWS+
| SYSTEM FEATURES |
|---|
| Scan pipes from 3” to 30” diameter with minimal setup time |
| Operate with a minimum 0.5” clearance between the detector and the OD of the pipe |
| Installed on ferrous and non-ferrous piping |
| Portable with ease of handling |
| Weighs less than 30lbs |
| Environmental Protection to enable use in field conditions |
| Modular design for field serviceability |
| Easy snapon mounts with adjustable articulating arms to install and position Isotope source head on scanner |
| Starting position on pipe adjustable via easy GUI interface |
| Auto rewind for cable handling |
| Manual Stop Override |
| Quick disconnect cabling |
| Starrview software with fully integrated motion and acquisition control |
| Starrview Image Review Tools |
| Image transmission via satellite as an option in remote areas |
| SPECIFICATIONS | |
|---|---|
| Scanner: | |
| Power Source: | 100-240V, 2.5A, 47-63Hz |
| Dimensions (LxWxH): | 12”X12”X6” |
| Encoder Accuracy: | 1/1000 of an inch |
| Motor Rating: | No load speed of 11100rpm @ 36V and 46.5mA |
| Temperature Range: | 41-140F (5-60C) |
| Technical Support: | 24-hour technical support |
| Detector: | |
| Receptor Type: | Amorphous Silicon |
| Conversion Screen: | GadOx or CSI |
| Pixel Area: | 5.8 x 5.8 in (14.6 x 14.6 cm) |
| Pixel Matrix: | 1152x1152 |
| Pixel Pitch: | 127 microns |
| A/D Conversion: | 16-bit |
| Data Output: | Gigabit Ethernet |
| Temperature Range: | 41-140F (5-60C) |
| Accessories: | 1800 Watt Portable Power station and Simultaneous Battery Charger (max 35 pounds) Commercially available 20V Max Batteries Rugged Laptop Durable Pelican ™ travel kit |
