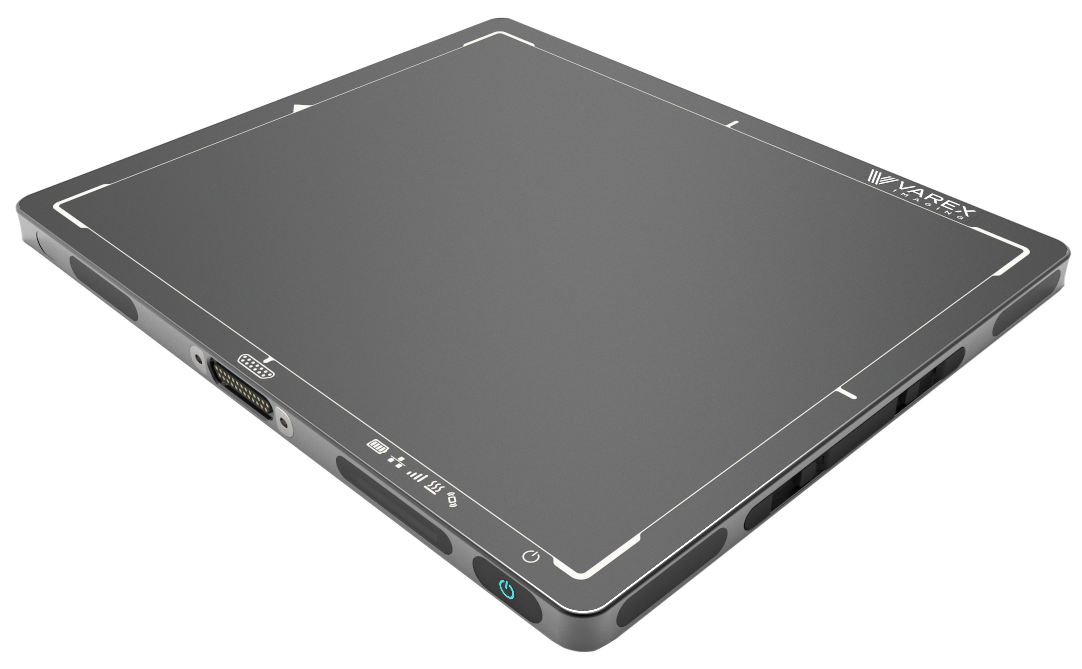

XRpad2 3025

The XRpad2 3025 is a lightweight, wireless flat panel detector with advanced features enabling digital radiography as never seen before. Featuring a best-in-class 100 μm pixel size, direct deposition cesium iodided scintillator, and excellent DQE, the XRpad2 3025 enables high resolution imaging with reduced X-ray exposure. Design of the second-generation XRpad® is lightweight, robust, and ergonomic, permitting easy lifting from table top.

Automatic exposure detection, on-board corrections, and wireless access point mode make system integration quick and simple. The XRpad2 3025 includse fast preview, internal image storage, and a magnetic connector for docking. Continuous imaging at up to 10 fps facilitates advanced applications such as tomosynthesis, dual energy subtraction, and image stitching.

Features and benefits for the XRpad2 3025 flat panel detector include:

  • 25 cm x 30 cm (10" x 12") image
  • High resolution 100 μm pixel pitch (5.0 lp/mm)
  • Direct deposition Csl, for excellent image quality
  • Up to 65,536 grey levels (16-bit ADC)
  • Automatic Exposure Detection (AED)
  • Wi-Fi interface (Station and Access Point modes)
  • Docking connector for GigE, power and sync
  • On-board pixel corrections and storage
  • Dynamic mode for with 10 fps at 200 μm resolution
  • Fast preview image
  • Robust and lightweight design
If you are interested in this product or have any questions, please fill out our contact form below.

Contact Us
Varex Product
Technology Panel Size Pixel Matrix PIXEL SIZE µm
XRpad2 3025
30 cm x 25 cm
3004 x 2508
